MRC.G.al – Gravel fans will be thrilled

Light e-bikes not only work in urban areas, they also work very well off the beaten track. With our MRC.G.al, we have designed a light e-bike that shouldn‘t be missing on extended bike tours, is perfect for commuters or fitness session in your free time. We recommend two models from Bafang for the motors:
• H400 for longer, powerful climbs
• H600 for optimal lightweight construction (2 kg!)

Both motors are compactly integrated in the rear wheel hub and, with the optional torque sensors, off er similar support characteristics. The internally built-in battery has a compact design, is equipped with the latest cell technology and has a capacity of 360 Wh and is integrated seamlessly into the down tube. In conjunction with the low-profile tires, impressive ranges are possible.

Categorization:

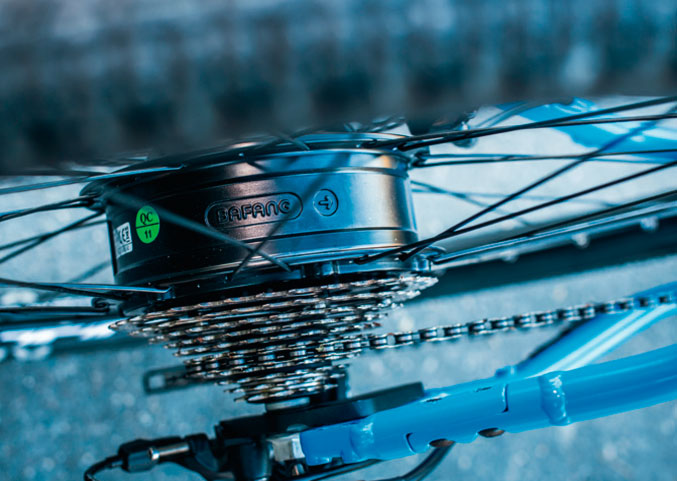

The light e-gravel bike is powered by a compact Bafang hub motor, which is inconspicuously integrated into the slim appearance.

The control unit DP C 11 also comes from Bafang and ensures a harmonious, sporty operating concept.

In order to maximize the intended use, the rear end and fork were designed so that tires up to max. 29x2.1 can easily fit into it.

Key Facts

Driven by compact Bafang hub motors, our light e-bike has torques of 30, 42 or 45 Newton meters.

Thanks to different motors, there are multiple options with this light e-bike. Light or powerful - the choice is up to you.

The battery with the latest 21700 cell technology and a capacity of 360 Wh, sits in the slim down tube.

Stylish and smart, that‘s exactly how we call our light e-bikes. In addition, the name suggests the sensationally low weight of approx. 15kg.

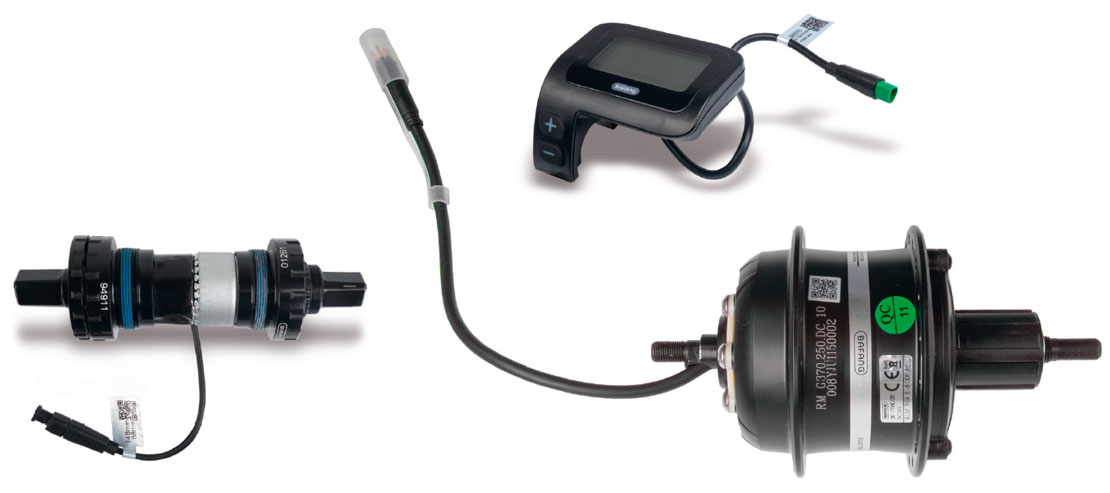

System

Sporty e-bikes need the right motor! Bafang supplies us with the right motors which, depending on the model, have a maximum torque of up to 45 Nm.

For improved performance and an even more sensitive sensor system, we use a special bottom bracket that makes the modulation of the engine characteristics very sensitive through the torque.

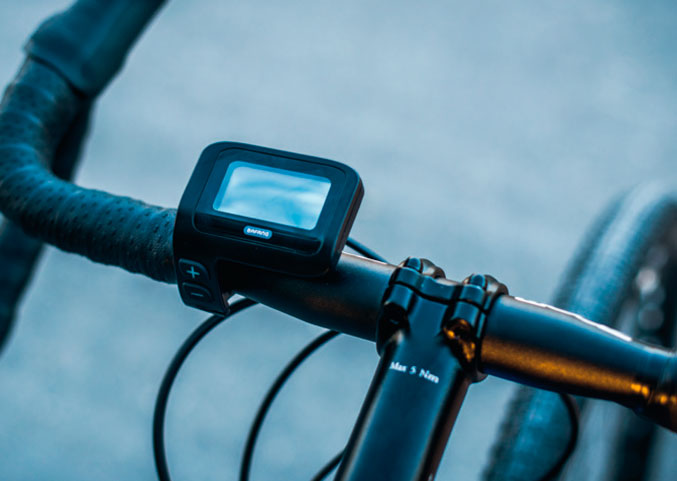

The inconspicuous Bafang DP C11 is used as a display, which blends harmoniously into the overall picture and clearly displays all the important data.

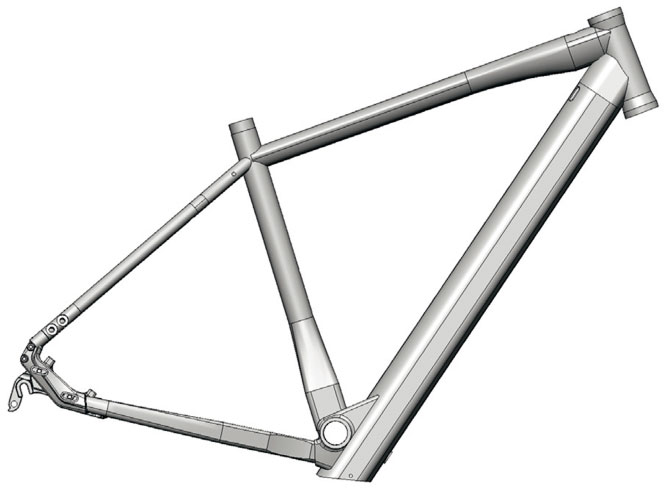

Geometry

Urban / Gravel

URBAN / GRAVEL	S	M	L	XL
Seat tube length	460 mm	500 mm	540 mm	580 mm
Top tube length horizontal	560 mm	570 mm	580 mm	590 mm
Steerer tube	150 mm	160 mm	170 mm	180 mm
Chain stay	445 mm	445 mm	445 mm	445 mm
Steerer tube angle	69°	69°	69°	69°
Seat tube angle	73°	73°	73°	73°
Wheelbase	1065 mm	1075 mm	1086 mm	1097 mm
Reach	379 mm	386 mm	393 mm	402 mm
Stack	592 mm	601 mm	611 mm	620 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30	ZS44/28.6 ZS44/30
Fork installation height	430 mm	430 mm	430 mm	430 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm	31.6 mm
