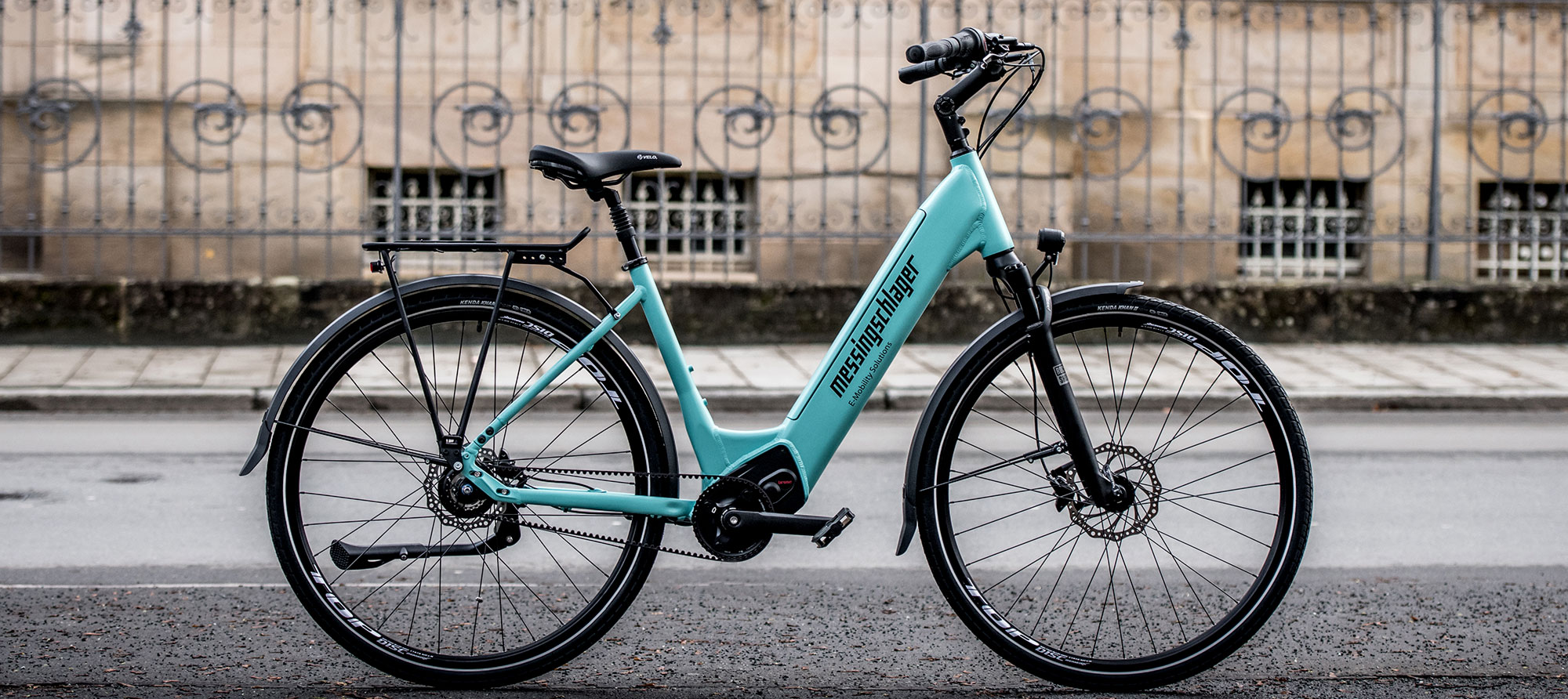

MUC.C.al – the perfect basis for an attractive city e-bike

E-bikes have become indispensable in urban areas. It is time for Messingschlager to use the experience gained and to further develop our well-known city and trekking line of the first generation. The aluminium frame with comfortable geometry and low entry is compatible with all Brose motors - Drive C, T or S. This also applies to the trekking concept. In order to increase the range, we also off er the option of using a 522 Wh battery - for particularly low-cost price points - or a long-range 630 Wh battery.

The battery removal was designed so that the cover and battery can be removed upwards without tools and that important ergonomic aspects are taken into account. We also have the greatest possible variety of power transmissions and, like the first generation, we use an open frame triangle so that both chain and belt drives can be installed without any problems.

Categorization:

The construction and design of our new city platform is modern, variable and ergonomic.

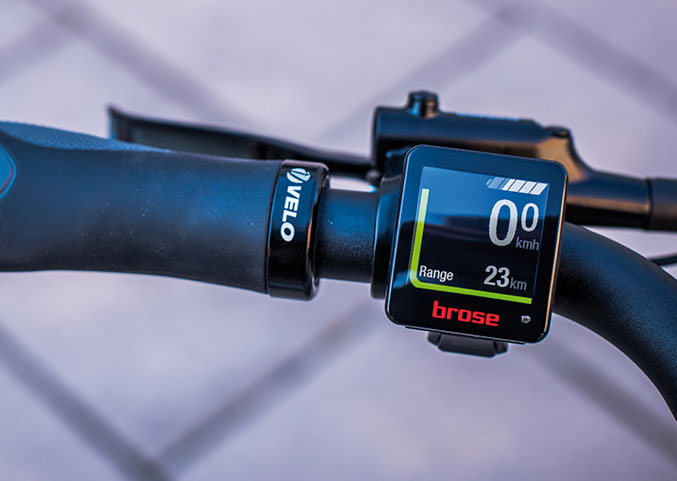

The new Allround display from Brose: high functionality with the clean look of a smart watch.

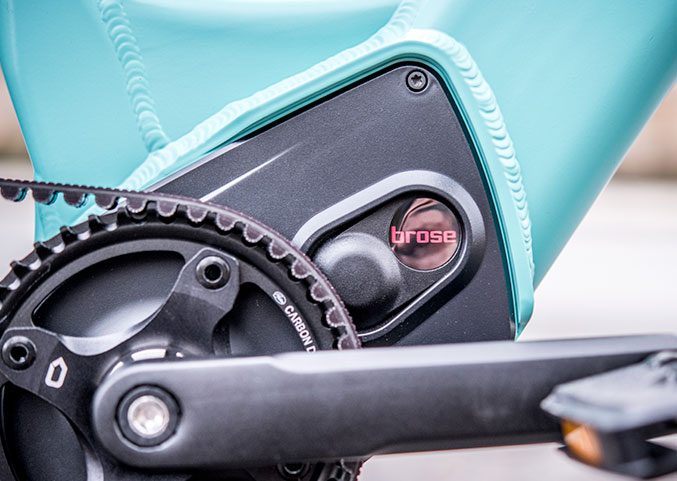

Flexibility with the motor: this model can optionally be equipped with a Brose Drive C, Drive T or Drive S.

Key Facts

Driven by Brose Drive C, T or S motors, the customer has the option of 50, 70 or 90 Nm max. torque.

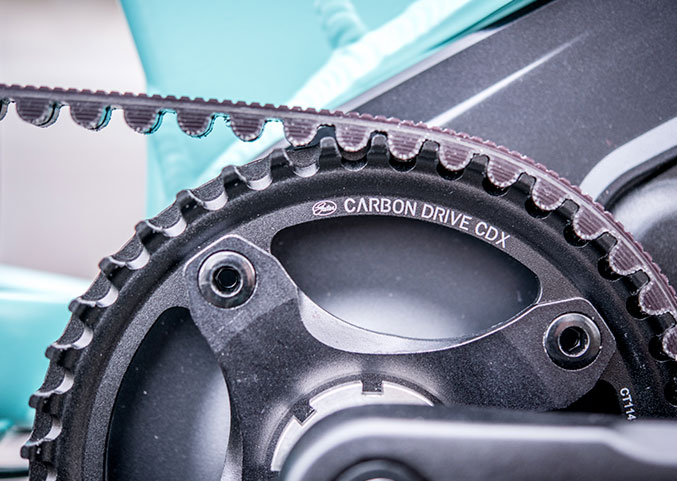

Maximum variability: thanks to the frame lock and construction, chain, hub and belt drives can be installed.

The battery, optionally in 522 or 630 Wh, is fully integrated in the frame and enables large ranges in.

Practical and elegant wave frame shape with deep entry and geometry for the challenges of the city.

System

Brose Allround Display | Brose Drive C/T or S | Battery with 522 or 630 Wh

With this frame platform, we offer the greatest possible variability and flexibility. Equipped with either Brose Drive C, S or T, the driving dynamics can be adjusted for different purposes.

With a maximum torque of 50, 70 or 90 Nm, this e-bike feels at home anywhere. As an information center, we decided on the Brose Allround Display, which impresses with its smart watch-like design and high functionality.

For high ranges in urban areas, we offer two diff erent batteries with 522 or 630 Wh for this platform. This means that nothing stands in the way of a long weekend tour or the daily commute to the office.

Geometry

Wave

WAVE	S	M	L
Seat tube length	440 mm	490 mm	540 mm
Top tube length horizontal	612 mm	629 mm	645 mm
Steerer tube	170 mm	185 mm	200 mm
Chain stay	475 mm	475 mm	475 mm
Steerer tube angle	69°	69°	69°
Seat tube angle	71°	71°	71°
Wheelbase	1124 mm	1141 mm	1159 mm
Reach	390 mm	402 mm	414 mm
Stack	644 mm	658 mm	671 mm
Head set (S.H.I.S.)	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40	ZS44/28.6 ZS56/40
Fork installation height	460 mm	460 mm	460 mm
Seat post Ø	31.6 mm	31.6 mm	31.6 mm
